90 Super Sucker

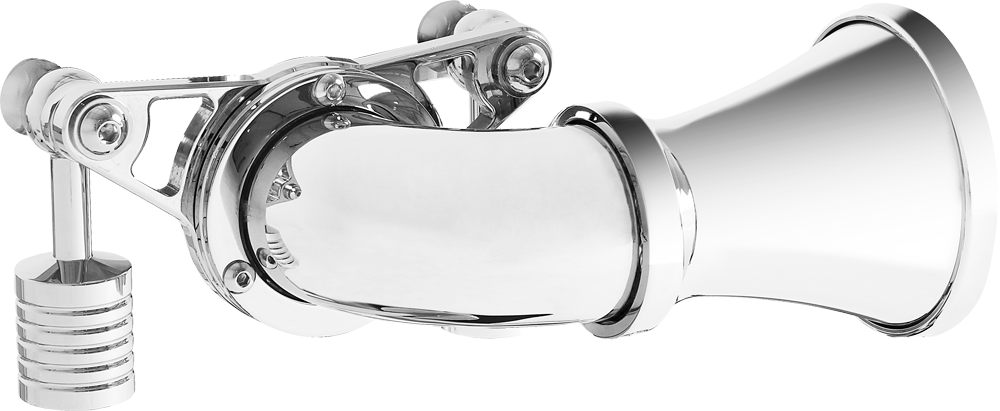

Another industry first from Wimmer Custom Cycle is our Super Sucker intake. The use of a velocity stack to increase performance has been time tested, and with the creation of a forward facing velocity stack your motorcycle can have this unique look. As with our Super Sucker Shorty intake, your choice of a 60 or 80 micron mesh stainless steel screen is enclosed in the throat of the velocity stack. Providing superior protection and increased air flow while looking good are features available to Wimmer Custom Cycle customers only.
Head Breathing Options
With all four stroke motorcycle engines, crankcase ventilation is required. We offer two methods of venting the heads. Customers can choose from our patented external top breathers or our one-piece internal support bracket. The internal bracket contains a breather passage back into the air cleaner / air filter. The internal venting will require little to no servicing and, for some customers, may provide a cleaner look. If you choose the external breathers, there is a small cleanable cotton filter inside the top breather housing that will require servicing when full. The choice is yours and if you need further information in making your decision please feel free to contact us.
To learn more send us a message, or call us at (866) HOT CYCLE.
Wimmer Custom Cycle exclusively manufactures our own line of cleanable / reusable air filters. We design our air filters to provide superior filtration, thus allowing proper protection of your engine, while maximizing the airflow of the air cleaner / air intake you have purchased. Each air filter is designed to our own unique requirements and specifications based on the air cleaner / air intake it was designed for.
The air filters are manufactured from multiple thin layers of surgical grade cotton mixed with polyester. The cotton polyester mix is then sandwiched between two layers of epoxy coated wire mesh. Pleats are then formed, allowing for increased surface area which in turn leads to increased efficiency. The pleated assembly is then shaped and molded with urethane to its final product.
Since Wimmer Custom Cycle’s air filters are manufactured from a cotton / polyester blend, they can be cleaned and re used. The cleaning process is fairly simple and requires no special products. The frequency of cleaning will depend on environmental factors and usage; a good rule of thumb would be once a year or every 15,000 miles. (More frequent cleaning may be necessary depending on environment)
Please follow the steps below for cleaning:
Wimmer Custom Cycle rain socks are designed to provide water repellent protection and enhance the efficiency of all exposed air intake assemblies (air filters and/or velocity stacks), while adding little restriction to the airflow of the intake. All rains socks are constructed with a proprietary polyester mesh and then treated with a hydrophobic water repellent process. The rain socks are designed specifically for each individual air filter and/or velocity stack to insure superior fitment and performance. Most rain socks are available in six standard colors.
The average life cycle of the water repellent treatment is 1-2 years, depending on conditions and usage. The rain socks are NOT water proof.
